Description
The NSP1506 pass through Dishwasher offers an ideal washing solution for all in-line or corner locations and installations. Constructed in 18/10 AISI 304 stainless steel structure, including the wash tank the unit also features height-adjustable legs and a spring operated hood that starts and stops the washing process when opened and closed.

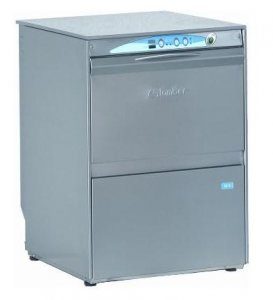

Image is for illustration purposes only, tabling, sinks and prerinse units are optional extras.
Features:
- Output up to 55 racks per hour
- Double skin construction minimises heat loss and noise
- Wash tank has rounded edges that ensures the complete drainage of dirty water.
- Upper and lower rotating wash and rinse arms.
- Surface filters covering the whole tank.
- Adjustable wash and rinse thermostats.
- Spring operated Hood.
- The washing cycle starts only when the hood is completely closed.
- The appliance stops working if the hood is lifted by chance.
Specification
- Dimensions mm: W 670 x D 765 x H 1460.
- Internal clearance: 415 mm.
- Rack dimensions: 500 x 500 mm.
- Working cycles: 60-90-120 Seconds.
- Power consumption: 10.1 kw three phase (16 amps).
- Power consumption: 7.1 kw single phase (30 amps)
- Plates per basket: 16.
- 1 year parts and labour warranty.
Standard equipped:
- Built-in rinse aid and detergent dispenser.
- Supplied with 2 plate baskets, 1 glass basket, 2 cutlery container.
Optional Extras:
- Built-in drain pump – NSP1506P.
- Built-in break tank – NSP1506BT.
- Built-in break tank and drain pump – NSP1506PBT.
- Entry and exit tabling – AC00125.
- Entry and exit wing tabling – AC00068-NS.
