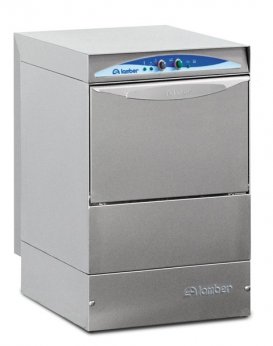

Undercounter Economy Glasswasher Model DSP20

Description

The DSP20 economy front loading under counter glasswasher is constructed in  18/10 AISI 304 stainless steel. Features include a wide double-skinned balanced door and stainless steel wash tank with rounded edges that ensures the complete drainage of dirty water. Lower rotating wash and rinse arms and fixed upper rinse arm and wash pump filter.

Specification

  • Dimensions mm: W 460 x D 505 x H 680.
  • Internal clearance: 240 mm.
  • Rack dimensions: 400 x 400 mm.
  • Working cycles: 2 minutes.
  • Power consumption: 2.6 kW.
  • Power: 240 V / 12 amp.
  • Pint glasses per basket: 15.
  • CE Certified.
  • 1 year parts and labour warranty.

Standard equipped includes:

  • Built-in rinse aid and detergent dispenser.
  • Supplied with 2 glass baskets, 1 saucer rack, 1 cutlery container.

Options:

  • Built-in drain pump – Model DSP20P

Related PDF Downloads

Download the documents below to view additional information on this product range.

DSP20 Brochure

DSP20 Technical Diagram
